MAIN FEATURES

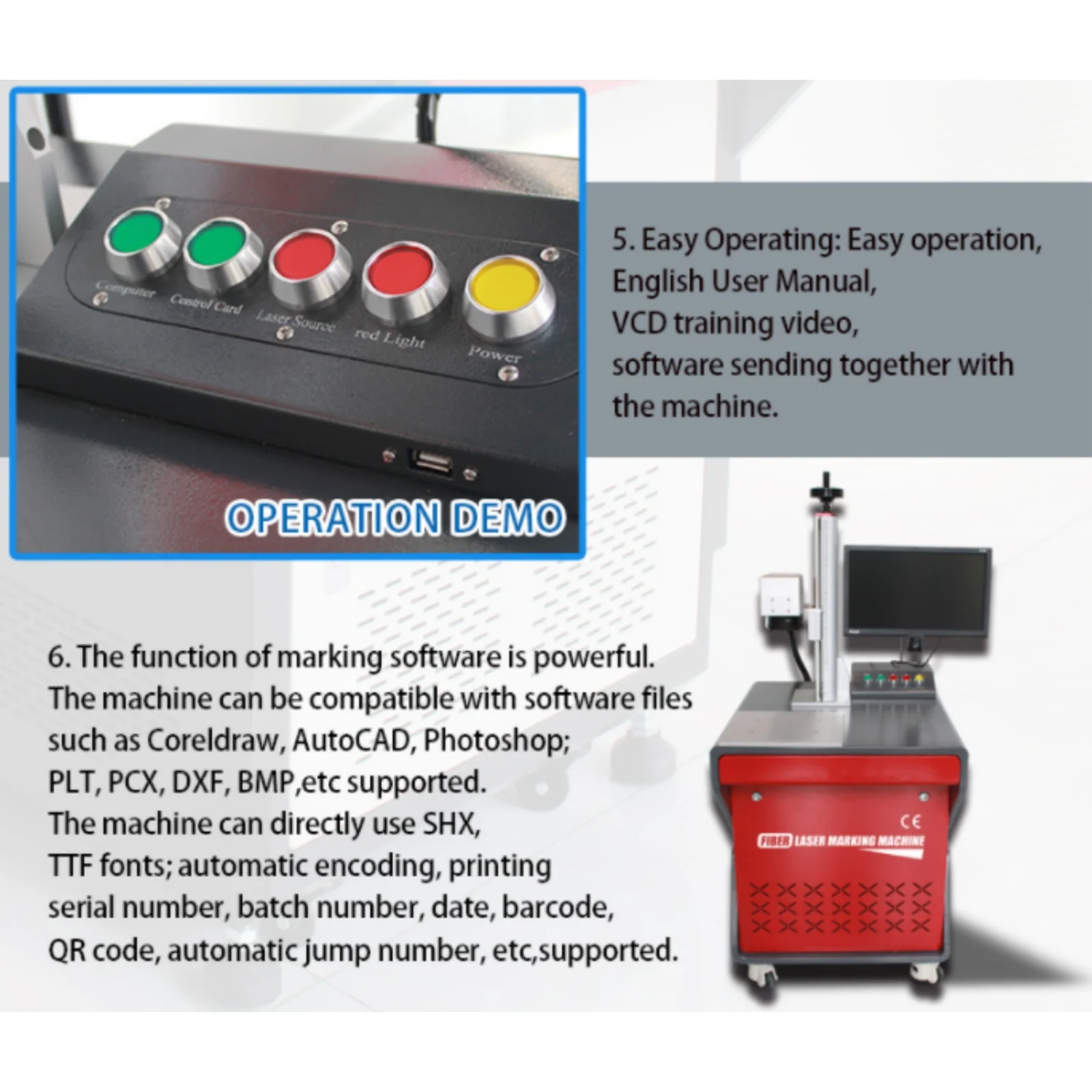

• Easy Operating: Easy operation, English user manual, VCD training video, software sending together with the machine.
• The function of marking software is powerful. The machine can be compatible with software files such as Coreldraw, AutoCAD, Photoshop; PLT, PCX, DXF, BMP, etc supported.
• The machine can directly use SHX, TTF fonts; automatic encoding, printing serial number, batch number, date, barcode, QR code, automatic jump number, etc, supported.
• Applicable Materials: Aluminum, stainless steel, brass, copper etc. Also some of nonmetal such as nylon, light button, ABS, PVC, PES etc.
• Applicable Industries: Hardware industry, wrenches, measuring tools, sanitary ware, stainless steel, medical equipment, luggage, gifts, table bottom, glasses frames, instruments.

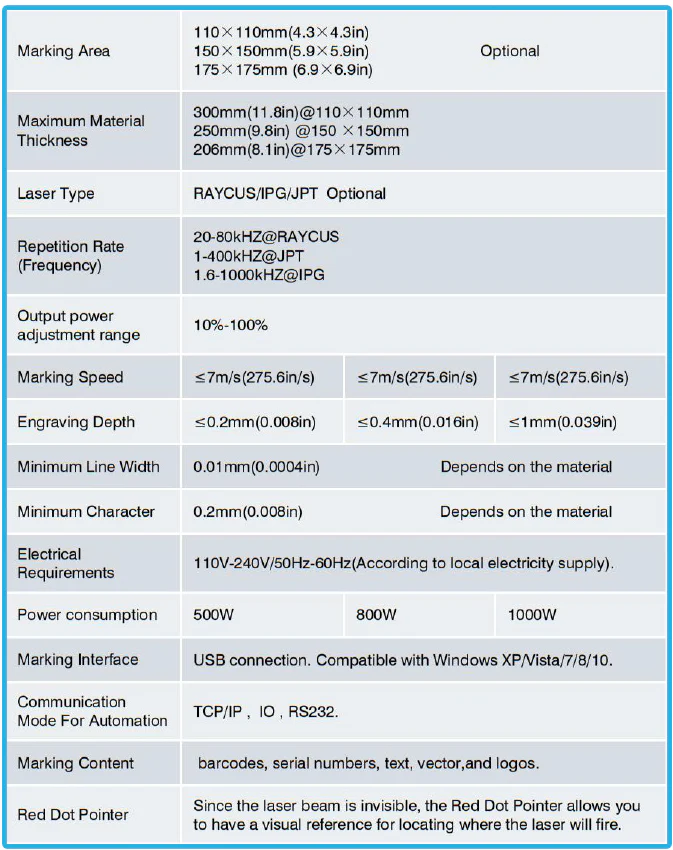

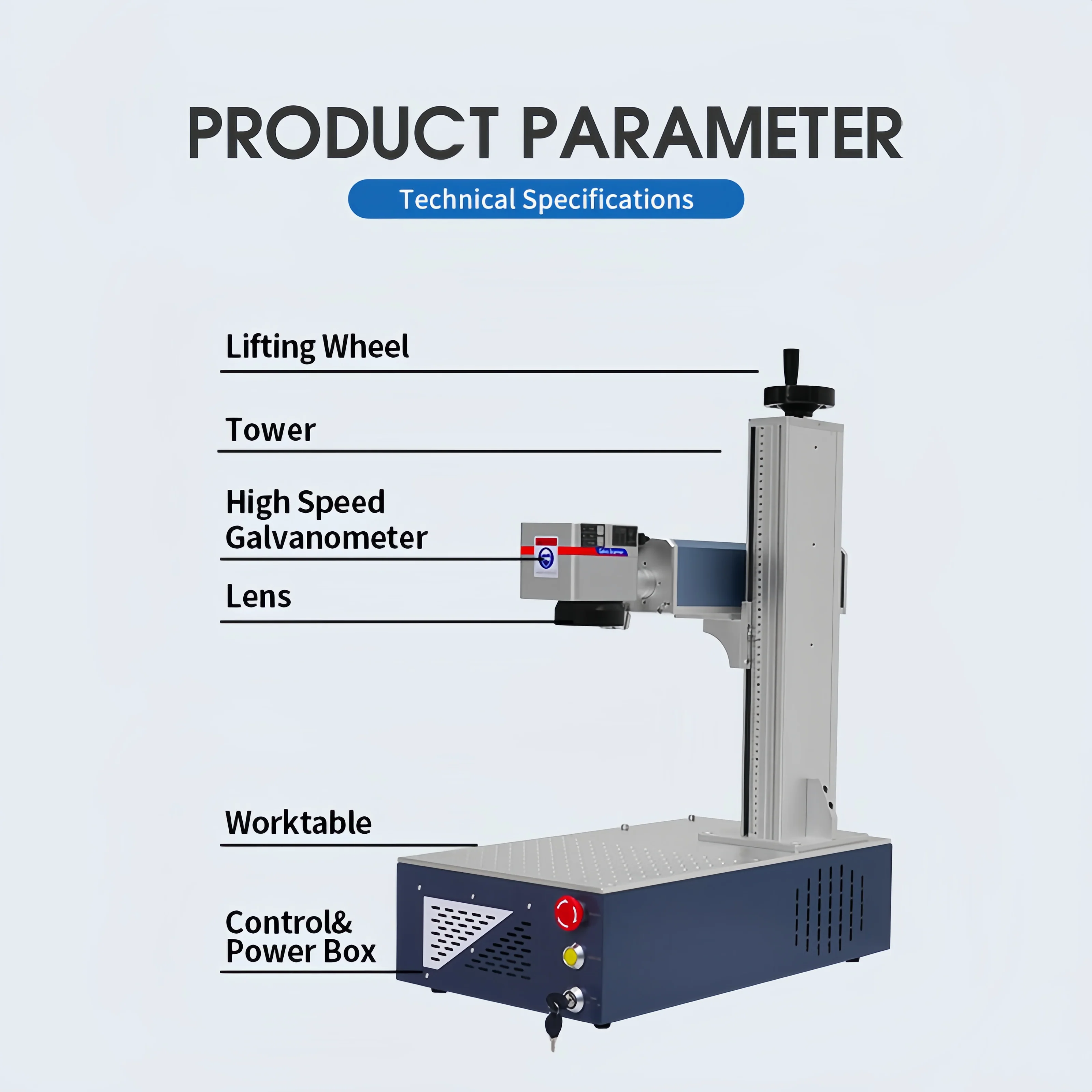

TECHNICAL PARAMETERS

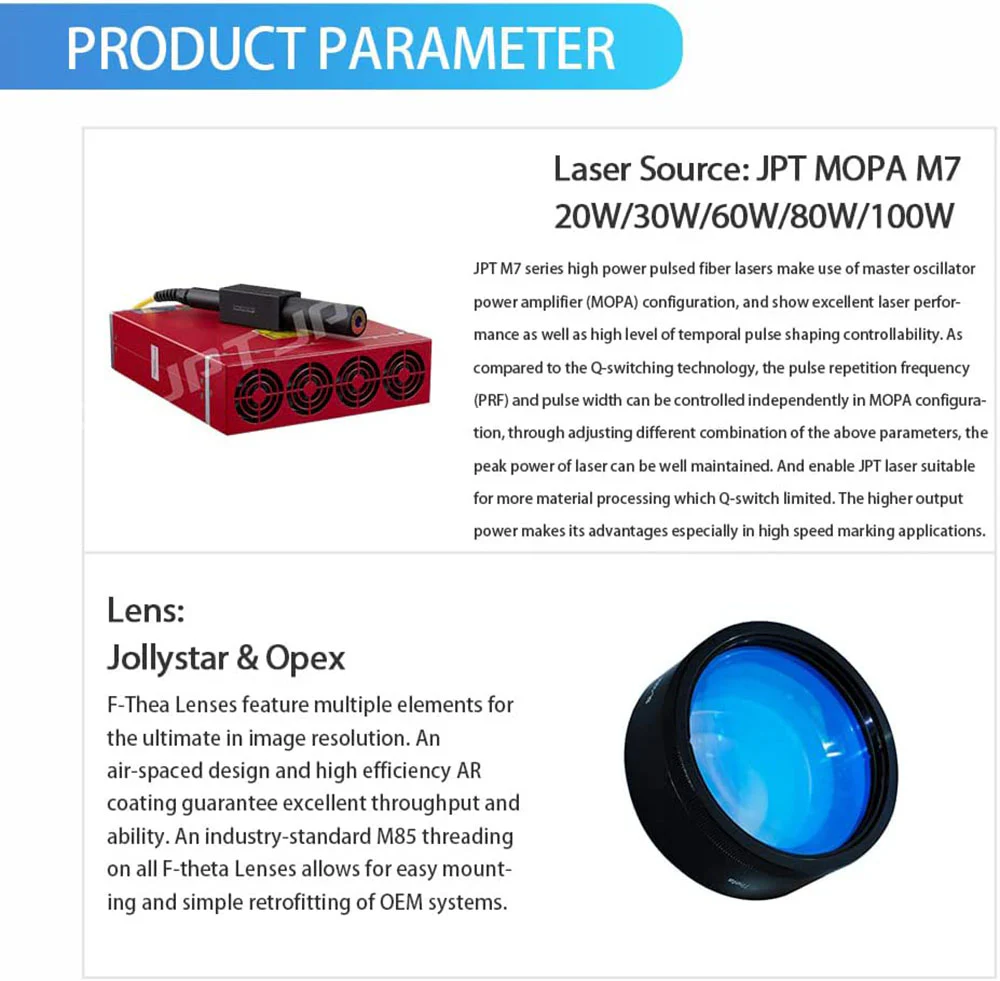

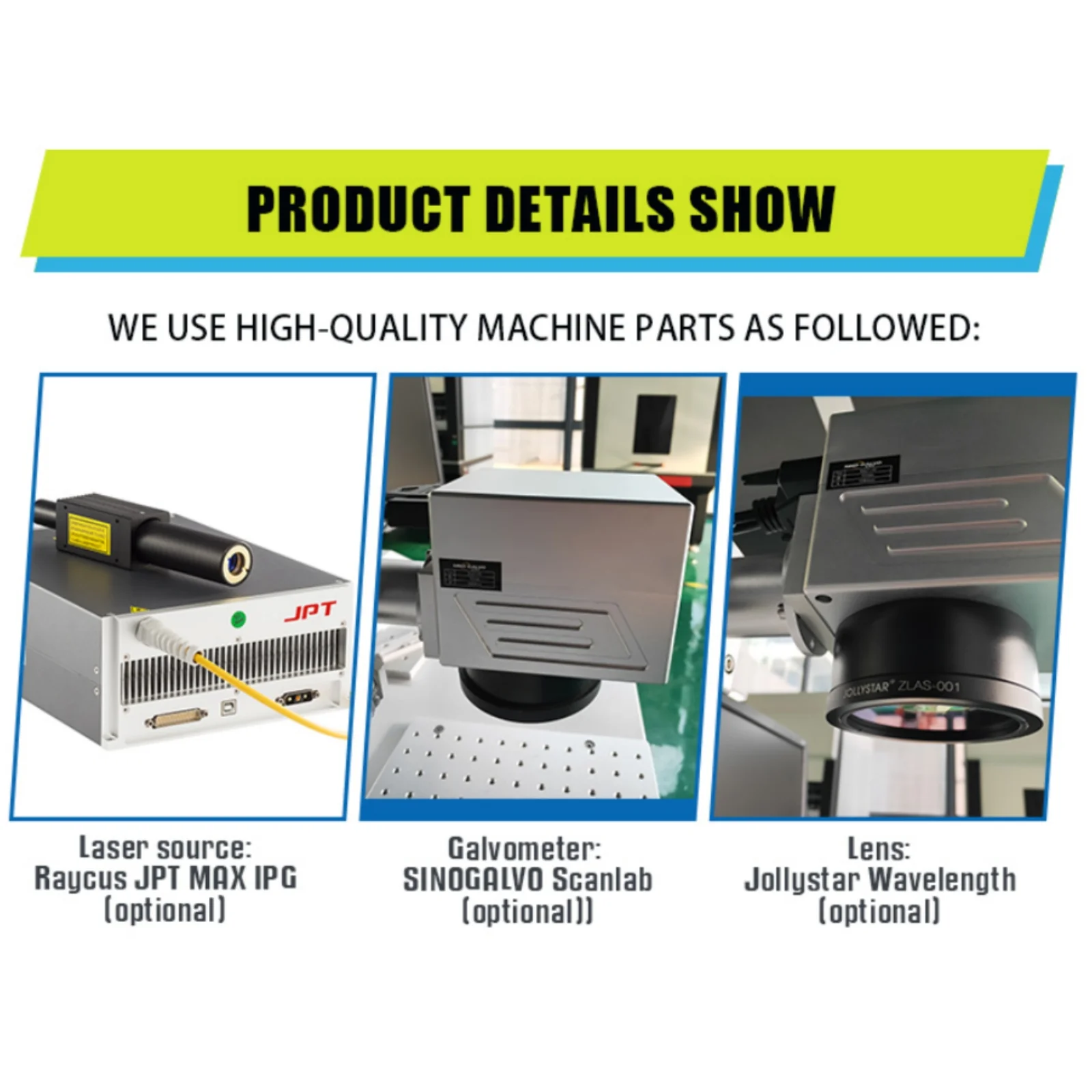

• Laser Source: 20W/30W/50W JPT LP+
• Adjustable Frequency Range: 1-600kHz
• Pulse Width: 200ns
• Marking Area(Lens): 110*110mm(4.3*4.3in)/150*150mm(5.9*5.9in)/175*175mm(6.9*6.9in) Optional

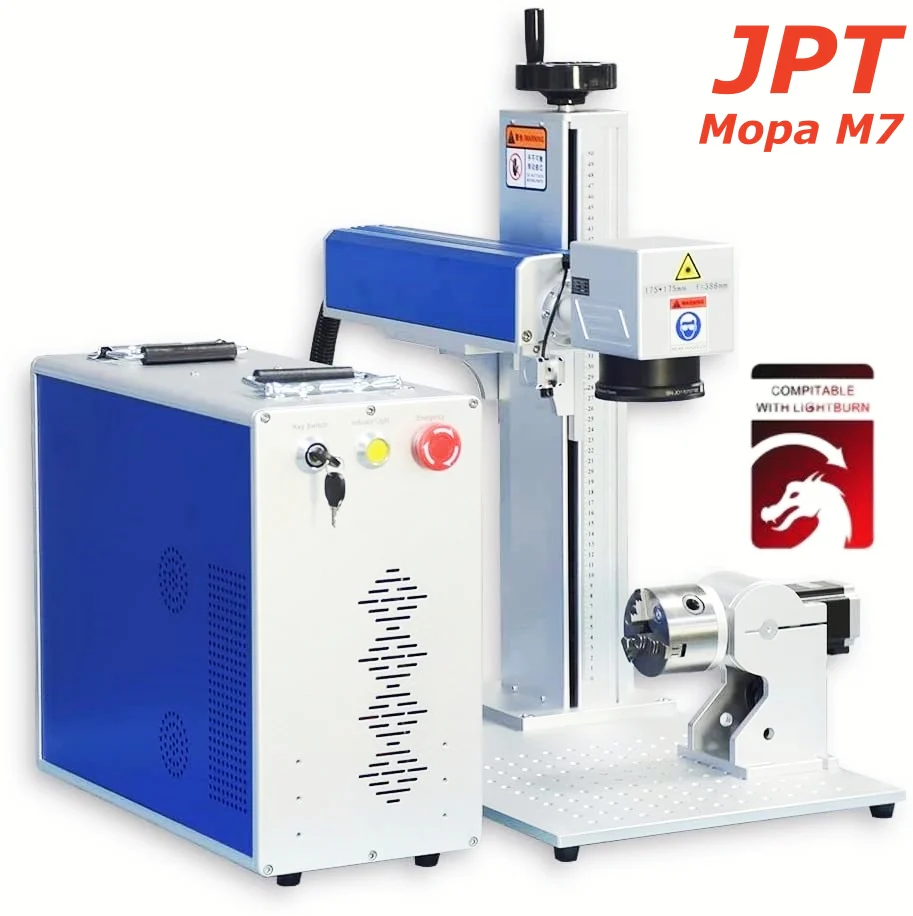

• Rotary Axis: D69/D80/100/125mm Optional
• Software: EZCAD2 (Compatible with Lightburn)
• Engraving Depth: 20W≤0.2mm(0.008in); 30W≤0.4mm(0.016in); 50W≤1mm(0.039in)

CARING WARRANTY

1 Year Warranty for the Whole Machine, 2 Years for Laser Source. No import duty and other tax for US Customers. English operation interface. Parameters are intuitive and adjustable. Lifetime technical assistance. Delivered to your door directly by DHL/UPS. Of course, if you want to reduce transportation costs(by sea), pls feel free to PM us.

DELIVERY

• Remote Assistance for operation issues
• Lifetime Online Technical Support
• Free Shipping to Your Door by Air (DHL/UPS) about 7-15 Days
• No Import Duty for American Customers.
