MAIN FEATURES

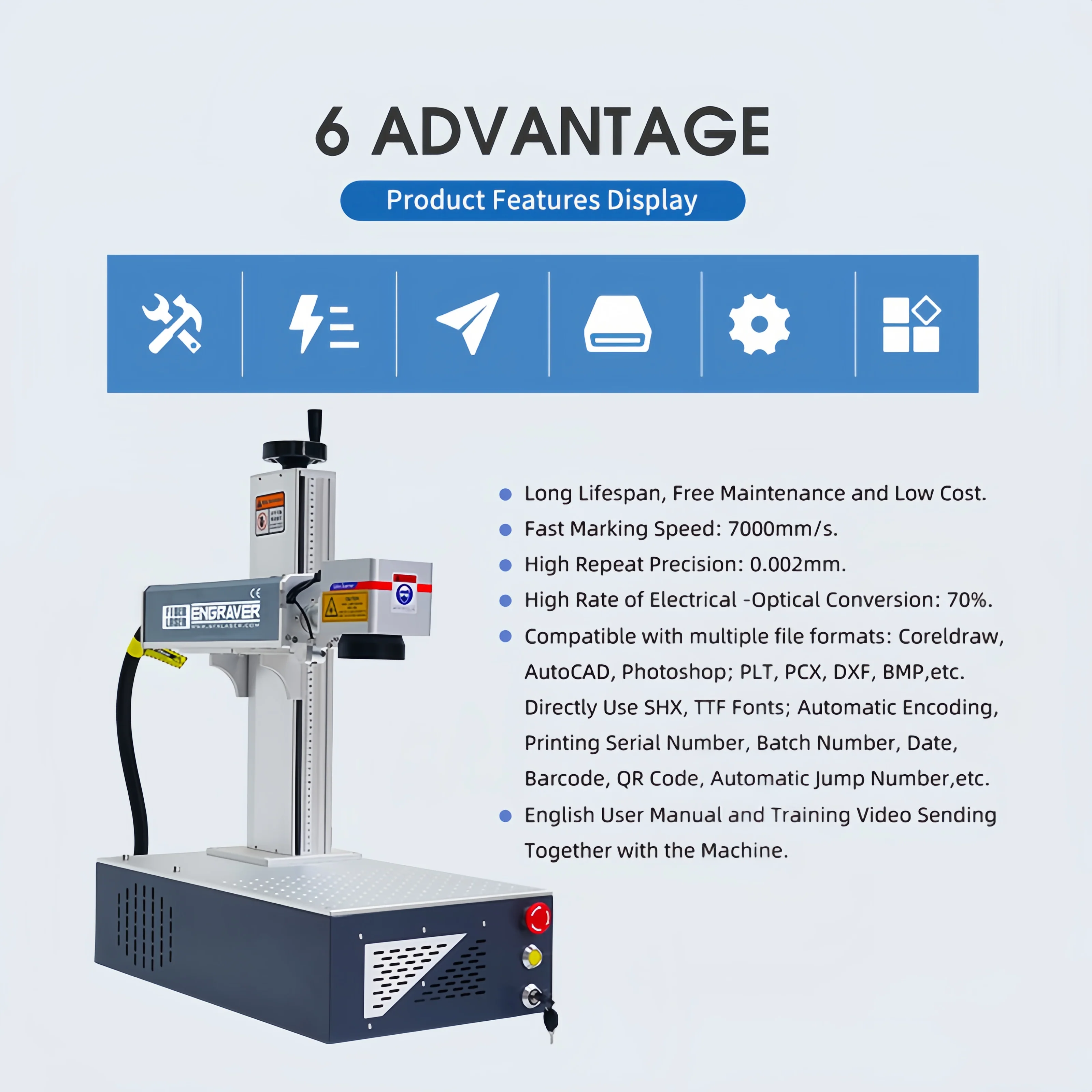

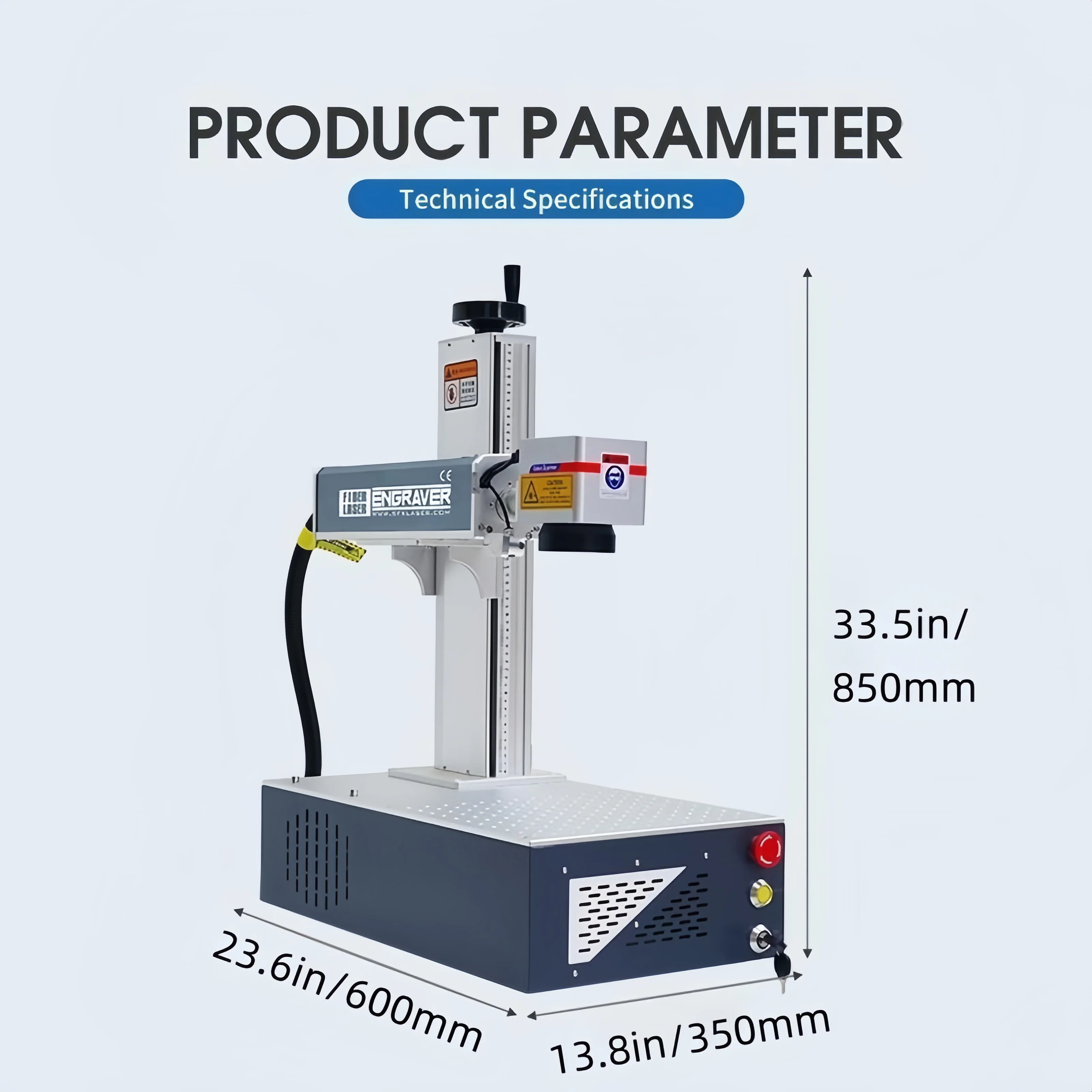

• INTRODUCTION: ZAC fiber laser engraver machine, with high quality MAX laser source, can be used with ease. This kind of laser engraving machine can mark all metals without consumption, allowing for more detailed and vivid engravings. Laser Power: 30W. Marking Area: 110 x 110mm(4.3 x 4.3in). Maximum Material Thickness: 300mm(11.8in). Weight: 35kg.

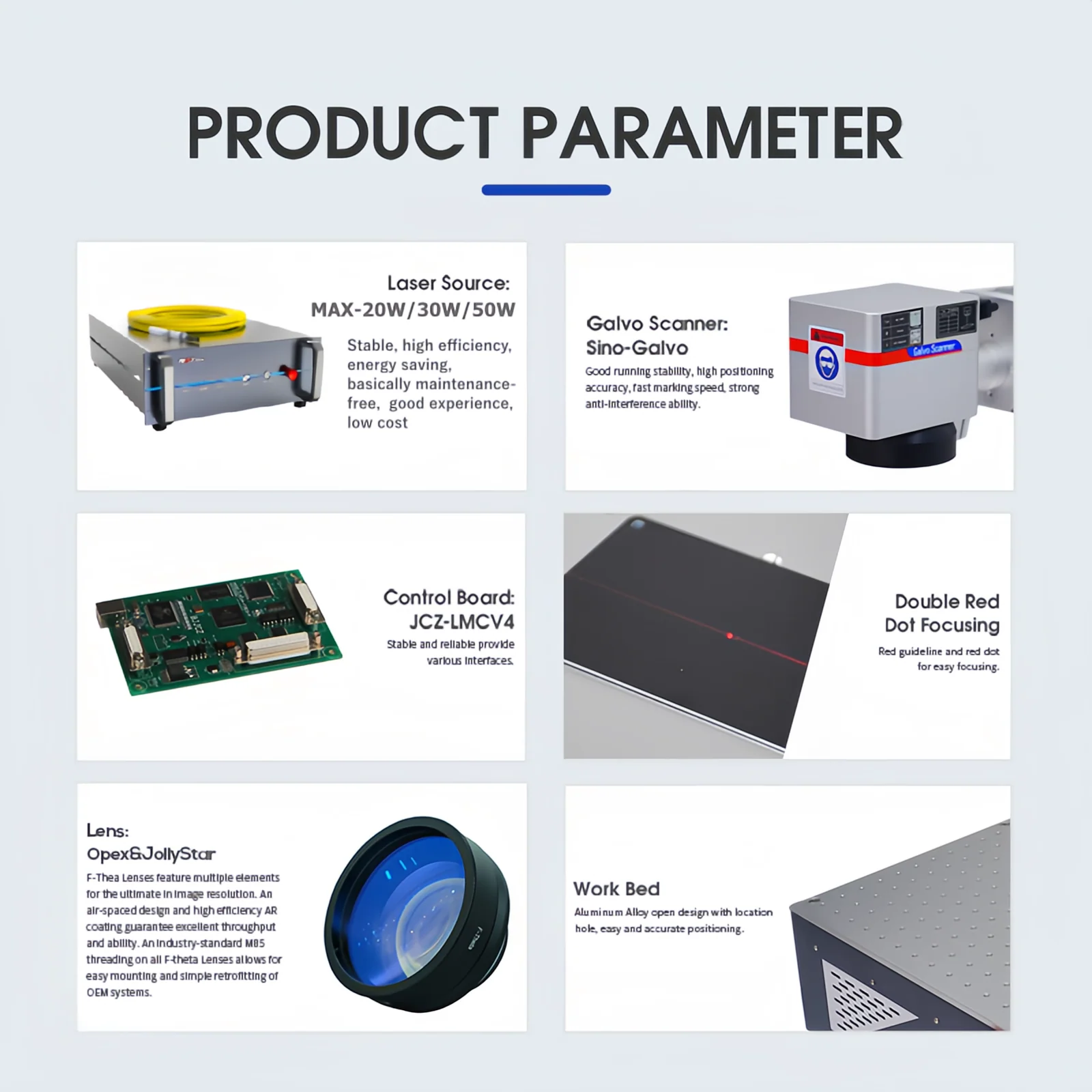

• FAST ENGRAVING SPEED: Because for the high quality JPT laser source and Sino-Galvo scanner, the portable laser marker has a very fast engraving speed of 7000mm/s which can highly improve your etching efficiency and save time and energy. So that this portable laser marker is an excellent choice for who looking for a fast and efficient engraver.
• COMPACT DESIGN: With small volume and portable design but powerful, this laser marking machine doesn't take up much space and can be carried everywhere on your needs. Additionally, the liftwheel can be adjusted to meet your needs. Additionally, the laser etching machine is convenient to set up and operate.
• HIGH PRECISION: The high repeat precision is 0.002mm. High-Rate of Electrical-Optical Conversion: up to 70%. Double red dot focusing can guide you focus more accurate. With 200ns pulse duration and adjustable column, the power and accuracy of this fiber laser marker can be highly increased. And it can creat wonderful etchings on metal and non-metal materials.

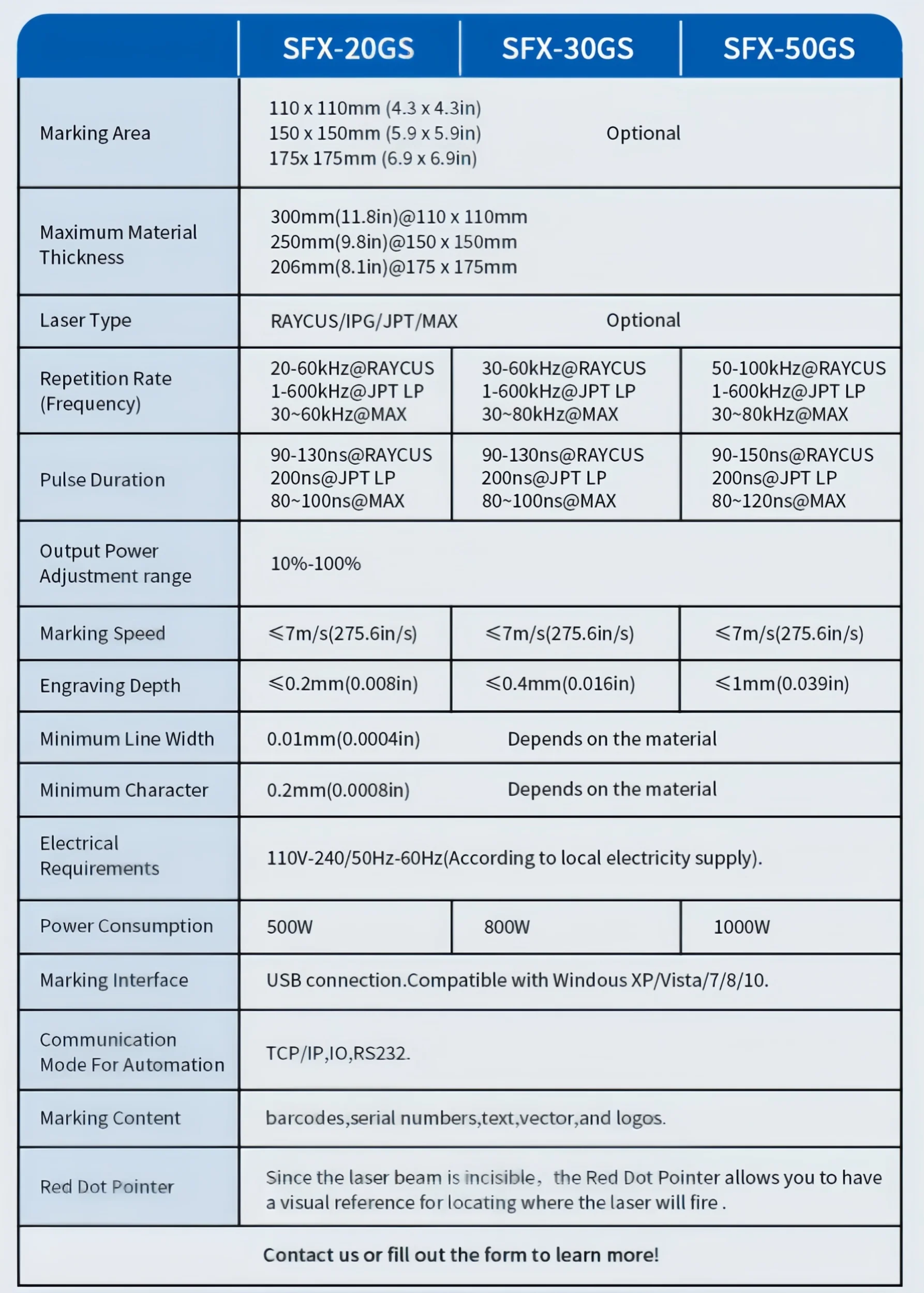

TECHNICAL PARAMETERS

• With EZCAD2.0 and Compatible with Lightburn
• Marking Area: 110x110mm(4.3x4.3in),150x150mm(5.9x5.9in),175x175mm(6.9x6.9in)
• Maximum Material Thickness: 300mm(11.8in)@110x110mm, 250mm(9.8in)@150x150mm, 206mm(8.1in)@175x175mm
• Laser Type: JMAX
• Repetition Rate(Frequency): 30-80kHz
• Pulse Duration: 80-120ns
• Output Power Adjustment Range: 10%-100%
• Marking Speed: ≤7m/s(275.6in/s)
• Engraving Depth: ≤0.2mm(0.008in)@20W, ≤0.4mm(0.016in)@30W, ≤1mm(0.039in)@50W
• Minimum Line Width: 0.01mm(0.004in) Depends on the material
• Minimum Character: 0.2mm(0.008in) Depends on the material
• Electrical Requirements: 110V-240/50-60HZ(According to local electricity supply)
• Power Consumption: 500W/800W/1000W
• Marking Interface: USB Connection. Compatible with Windows XP/Vista/7/8/10
• Communication Mode for Automation: TCP/IP, IO, RS232

CARING WARRANTY

We provide 2 years warranty for the laser source, 1 year warranty for the whole machine and the lifetime support. If you have any questions, pls contact us directylu and we will try our best to make you satisfied.

DELIEVERY

• Remote Assistance for operation issues
• Lifetime Online Technical Support
• Free Shipping to Your Door by Air (DHL/UPS) about 7-15 Days
• No Import Duty for American Customers.
