MAIN FEATURES

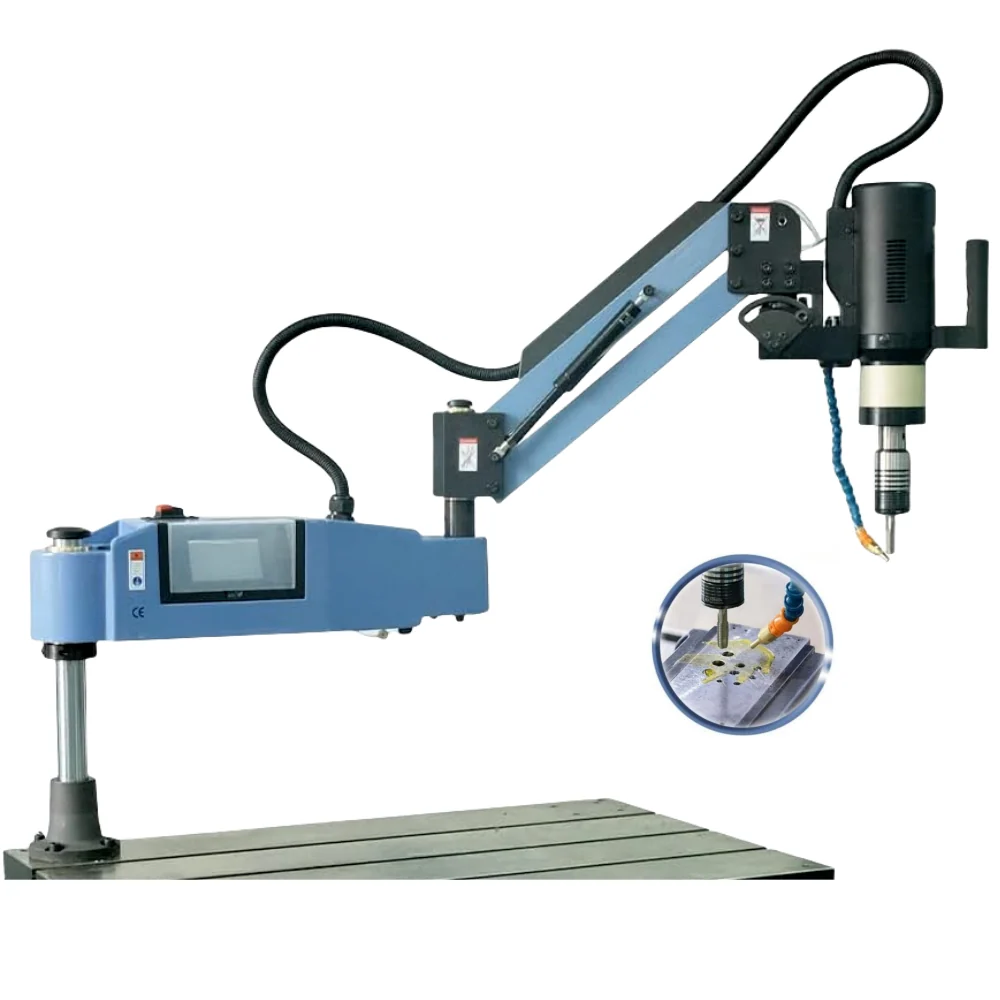

• INTRODUCTION: ZAC electric electric tapping machine can highly improve the productivity of making parts with a lot tapped holes.For M6-M33 (Aluminum) M6-M30(Steel) tapping. Supply Voltage: 110V. Rated Power: 1200W. Rotated Speed: 200r/min. Working Area: horizontal 1200mm, vertical 400mm. Dimension: 31.89*30.3*8.67in. Weight: 108lbs. Included 12 Pcs ANSI Standard Collets: 1/4", 5/16", 3/8", 1/2", 9/16", 5/8", 11/16", 13/16", 7/8", 15/16", 1-1/8", 1-1/4".
• HIGH EFFICIENCY: All the speeds, depths, and torque are adjustable on the screen. There are three working modes: Manual Tapping, Automatic Tapping, Deep Hole Tapping. So that you can choose the suitable modes for your demands and save your time and energy. Besides, the universal feature can achieve horizontal tapping which can highly improve the productions.

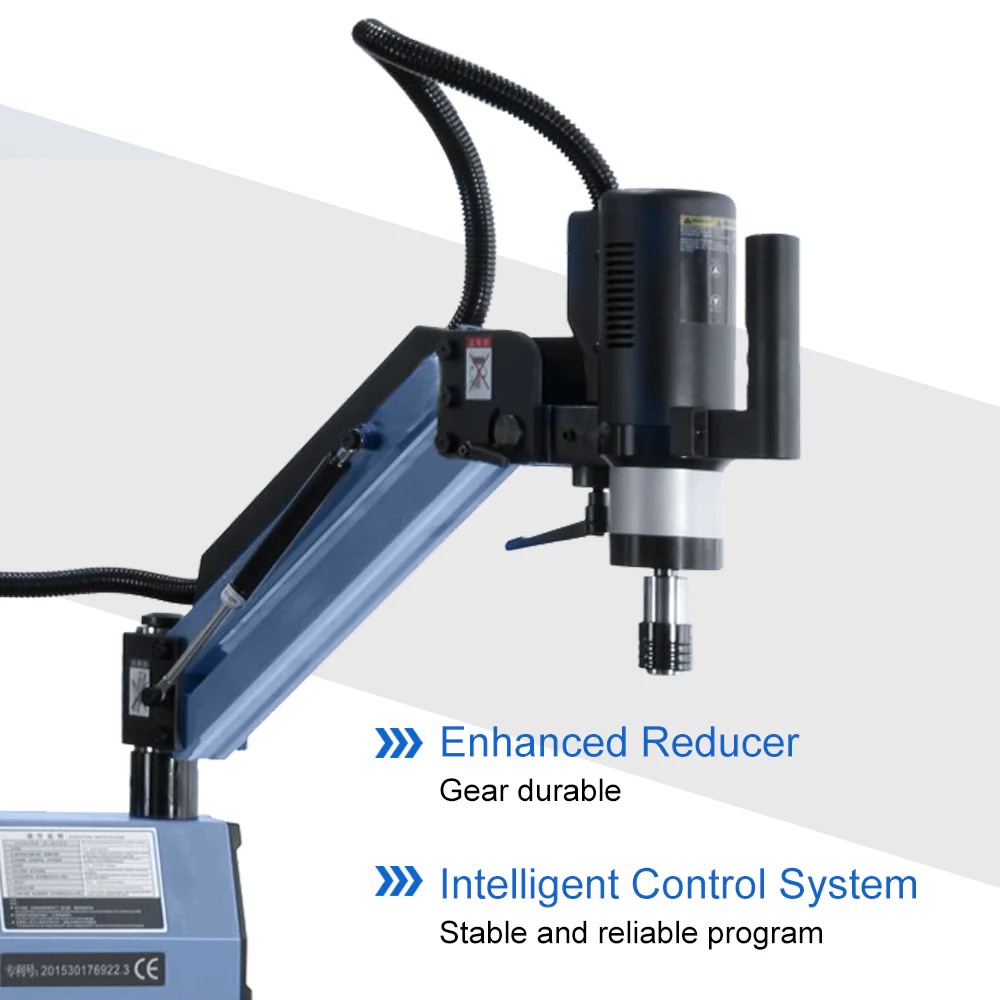

• STRONG OUTPUT: The electric tapping machine has an advanced flexible tapping system and imported servo motor which help the taps are not easily damaged when blind and deep hole tapping, and ensure the processing of high quality threaded holes and suit for various operations. Besides, the forward and backward speed can be adjusted to meed your working demands.

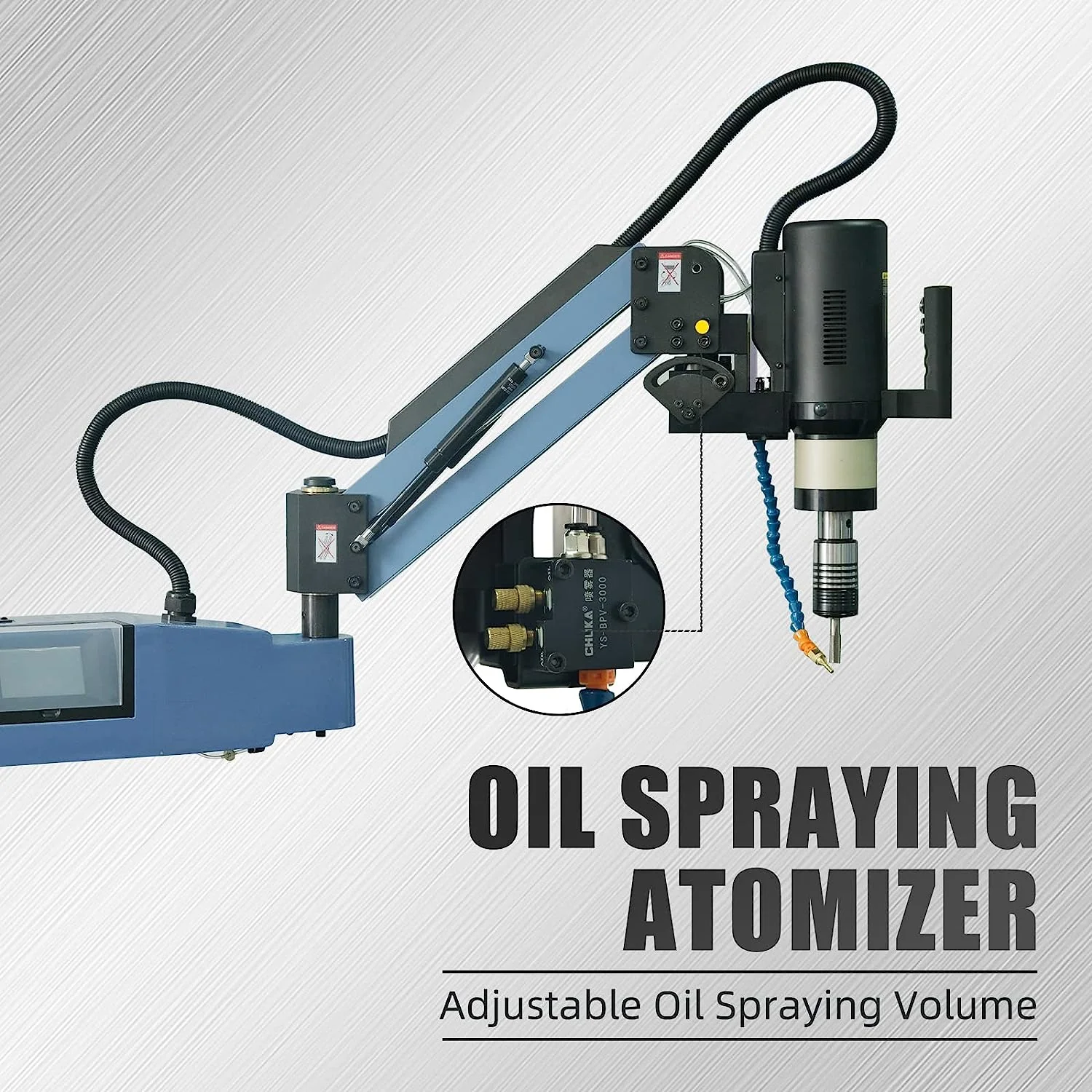

• AUTO-OILING FUNCTION (OPTIONAL): The auto-oiling feature ensures consistent and efficient lubrication during the tapping process, reducing friction and wear on the tool. This function enhances the longevity of the machine and improves the quality of the threaded holes by providing optimal lubrication automatically, allowing for smoother operation and less manual intervention.

• APPLICABLE MATERIALS: Aluminum, copper, A3 steel, 45 steel, cast iron, pig iron, Q235, S136, mold steel, 718H, 40Cr, stainless steel and other metal materials, plastic and wood and other materials.

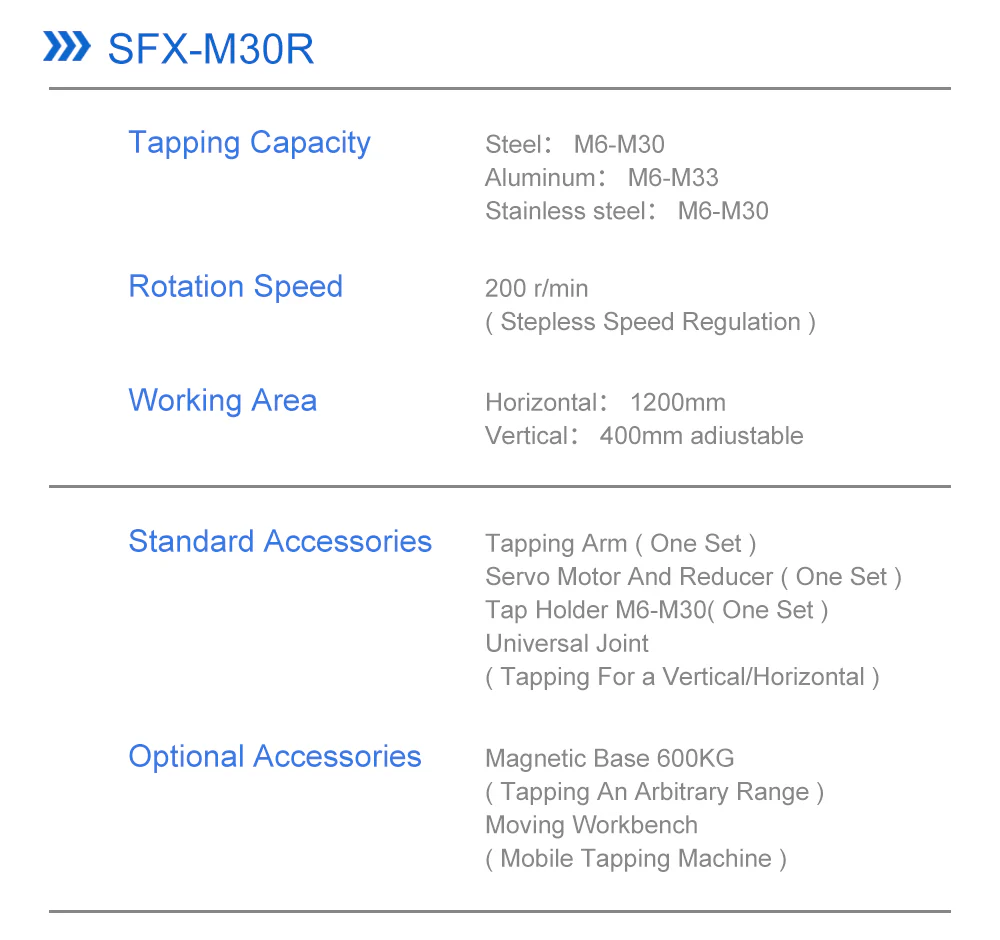

TECHNICAL PARAMETERS

• Tapping Angle: Universal
• Rotation Speed: 200rpm/min(Stepless Speed Regulation)
• Tapping Capacity:  Steel/Aluminum/Stainless steel: M6-M30
• Working Area Horizontal: 1200mm/47.24inch
• Weight: 54kg/119lbs
• Vertical: 400mm adjustable
• Power/Voltage: 1200W/110V
• Tap Collets: 12 Pcs ANSI Standard Collets: 1/4", 5/16", 3/8", 1/2", 9/16", 5/8", 11/16", 13/16", 7/8", 15/16", 1-1/8", 1-1/4".

CARING WARRANTY

We provide 1 year warranty for the whole machine. If you have any questions of the machine, please send us email via email, and our 24 hours customer service will support you.

DELIVERY

• Remote Assistance for operation issues
• Lifetime Online Technical Support
• Free Shipping to Your Door by Air (DHL/UPS) about 7-10 Days
• No Import Duty for American Customers.
