MAIN FEATURES

Precision Welding for Complex Components - Designed for automated high-precision welding of intricate parts, small to medium-sized workpieces, and irregularly shaped components. The enclosed system provides a clean, stable, and secure environment for enhanced weld consistency.
Advanced CNC Control with Multi-Language Support - The intuitive CNC interface allows for easy programming with a built-in process library, enabling quick setup and repeatable precision welding across different materials.
Intelligent Motion System - Featuring a 7-axis linkage with dual-pendulum galvanometers, this system enables advanced trajectory control, making oblique seam welding and complex 3D welding seamless and efficient.
Automation-Ready for Maximum Productivity - Seamlessly integrates with assembly lines and robotic arms, supporting fully automated online welding. The dual-station changeover function minimizes downtime and maximizes throughput.
Enhanced Safety & Durability - The fully enclosed design with an automatic safety door ensures a secure working environment. The heavy-duty steel plate workbench enhances structural durability, ensuring long-term reliability.
Real-Time Monitoring & Protection - Equipped with a high-resolution CCD camera for live welding observation and a built-in protective gas system to prevent lens contamination and prolong equipment lifespan.
Industrial-Grade Reliability - Engineered to withstand demanding conditions, this system has passed rigorous testing for interference resistance, high temperatures, vibration, fatigue, and cable durability—ensuring consistent, long-lasting performance.

TECHNICAL PARAMETERS

Models Available: DLW-1000A/DLW-1500A/DLW-2000A/DLW-3000A
Laser Power Options: 1000W/1500W/2000W/3000W
Wavelength: 1080±10nm
Laser Operation Mode: Continuous & Modulation
Max Frequency: 20KHz
Welding Width: 1-5mm
Welding Depth: 3mm, 4mm, 5mm, 8mm
Workbench Dimensions: 1300mm × 970mm
XYZ Travel Range: 800mm × 400mm × 400mm
Input Voltage:
- AC220V±10% (1000W, 1500W, 2000W)
- AC380V±10% (3000W)
Power Consumption: 7kW – 13kW (varies by model)
Cooling System: External Chiller (16L capacity)
Machine Size: 62in × 57in × 75in
Shipping Package Size: 71in × 63in × 83in
Weight: 580kg (Machine) + 50kg (Chiller)

CARING WARRANTY

Comprehensive Warranty: 1-year full machine coverage, 2-year laser source protection.
Expert Assistance: Remote support available for troubleshooting and operation guidance.
Hassle-Free Shipping: Free sea freight and truck delivery, with no import duty for U.S. customers.
Flexible Payment Terms: 30% deposit, 70% balance before shipment.

DELIVERY

Remote Assistance for operation issues
Lifetime Online Technical Support
Free Shipping to Your Door by Sea Freight
No Import Duty for Worldwide Customers.

Automatic Laser Welder

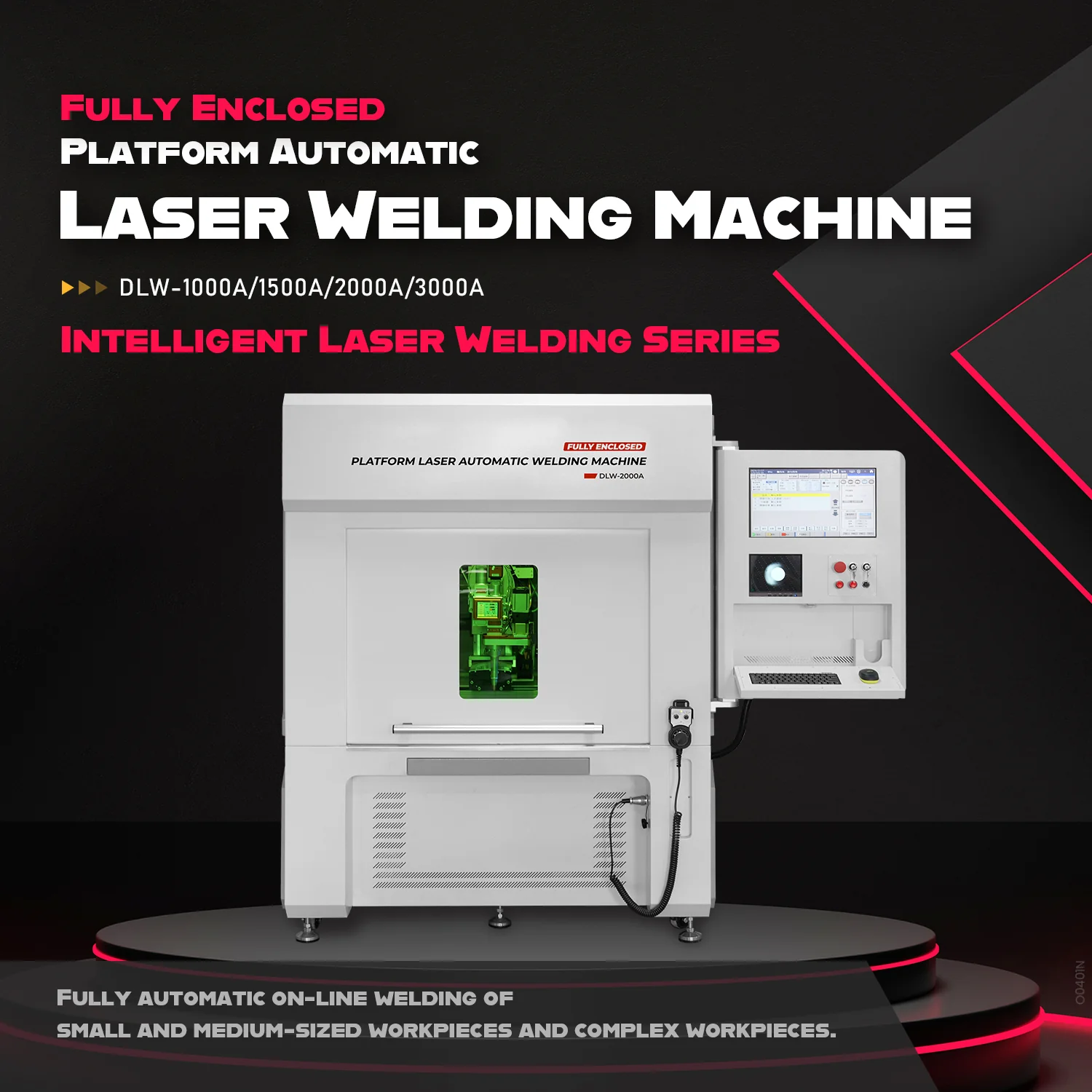

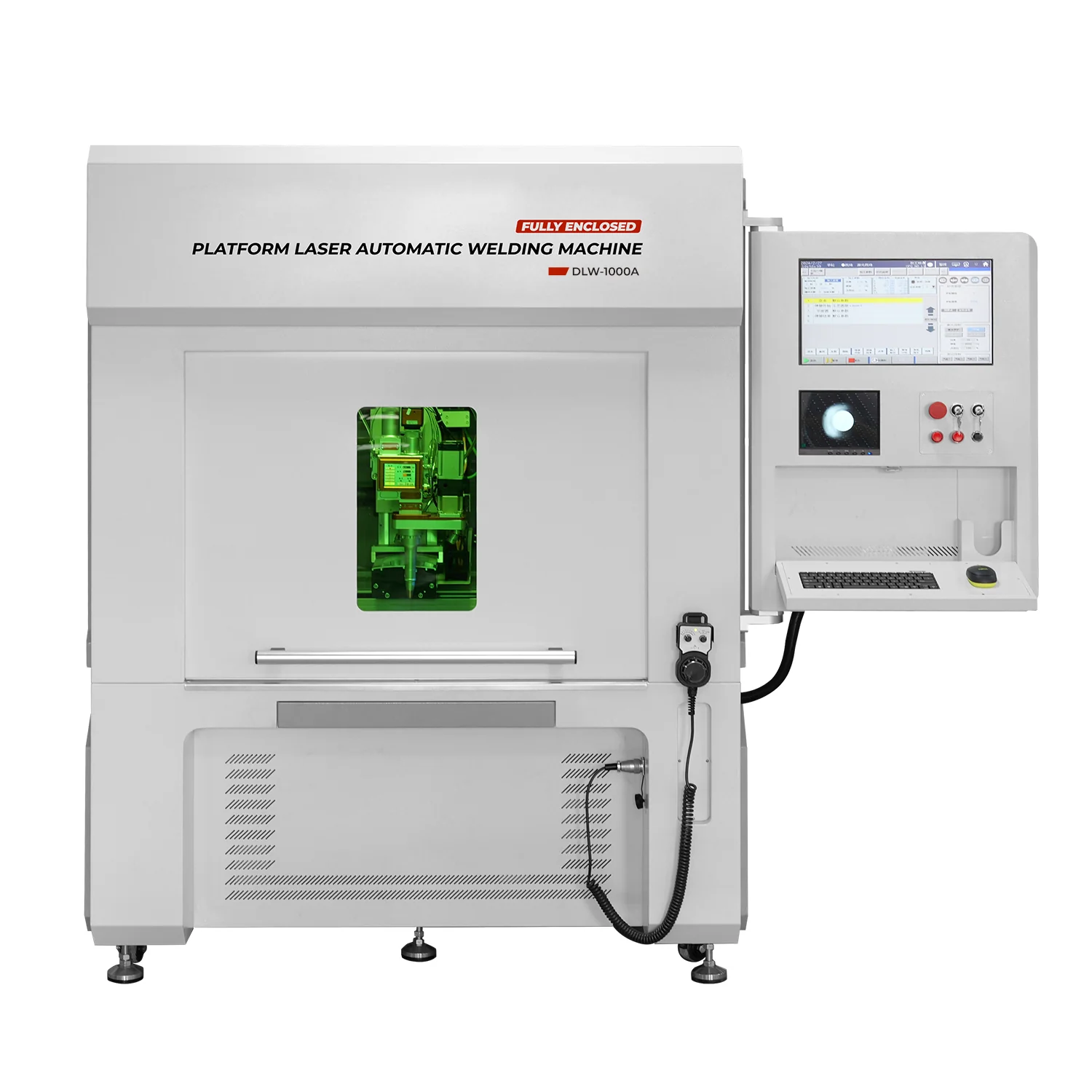

ZAC Platform Laser Welder 1000W 1500W 2000W 3000W Laser Welding Machine Fully Enclosed Multi-axis Linkage Automatic Fiber Welder

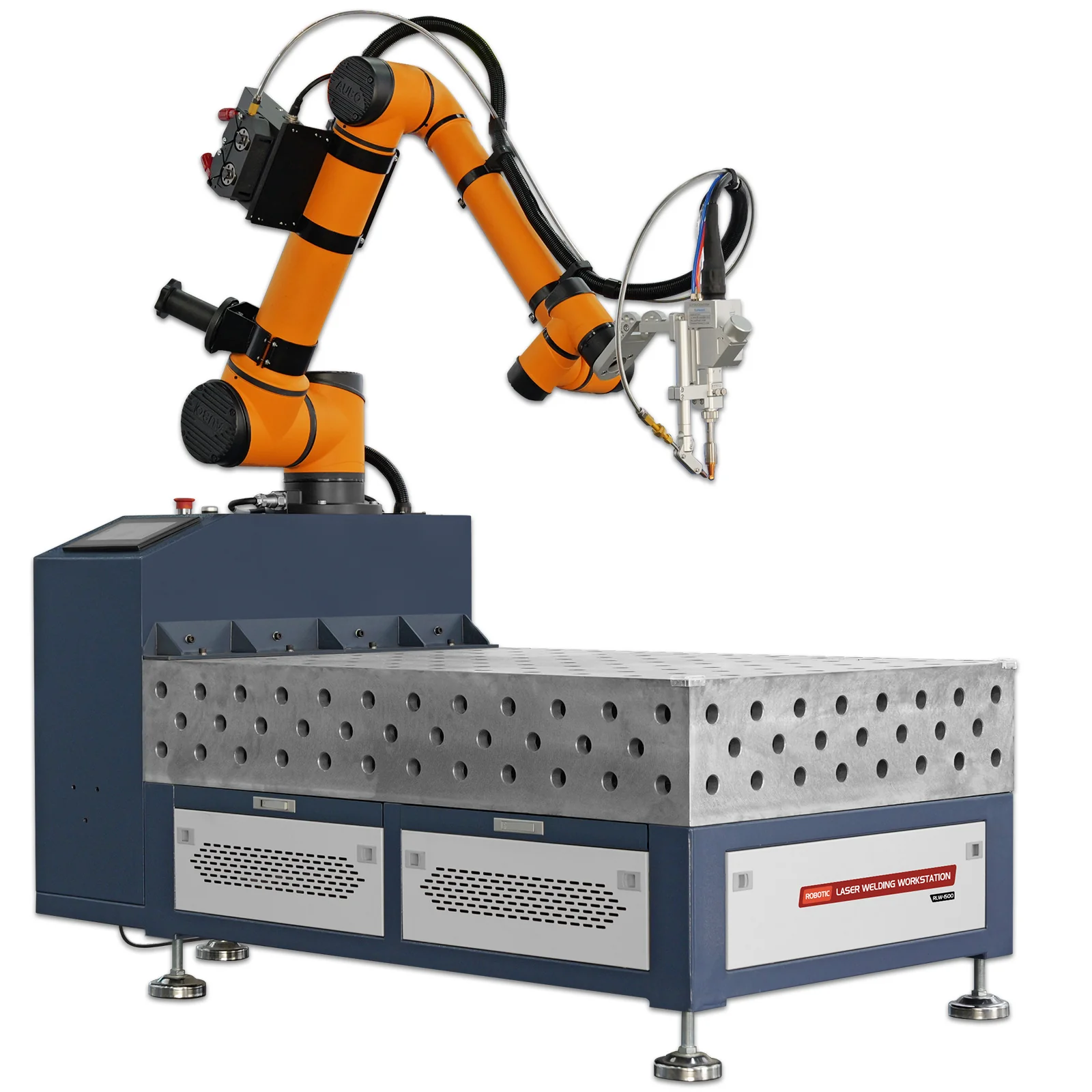

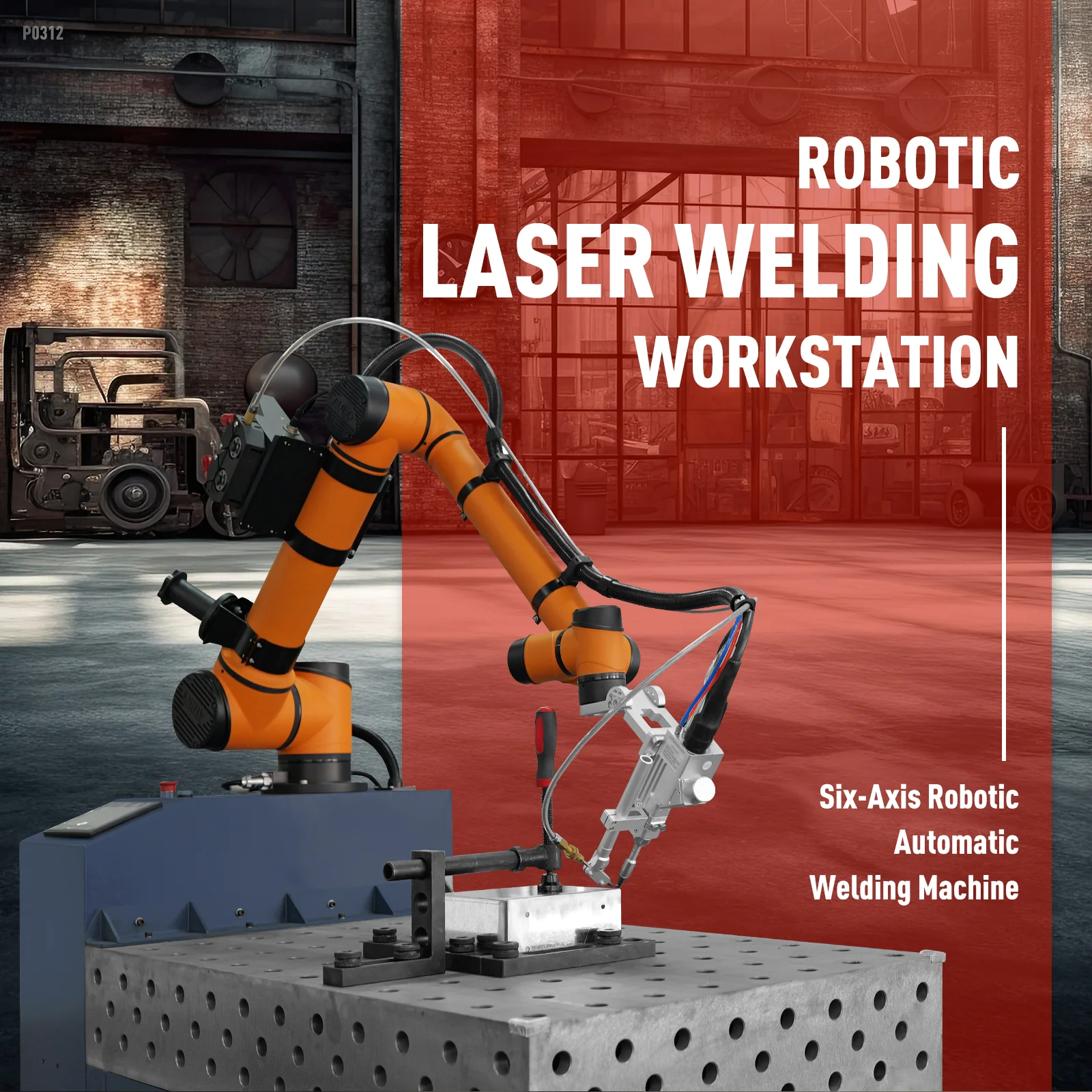

ZAC Laser Robotic Laser Welding Workstation 1500W 2000W 3000W Six-Axis Laser Welder with Robotic Arm

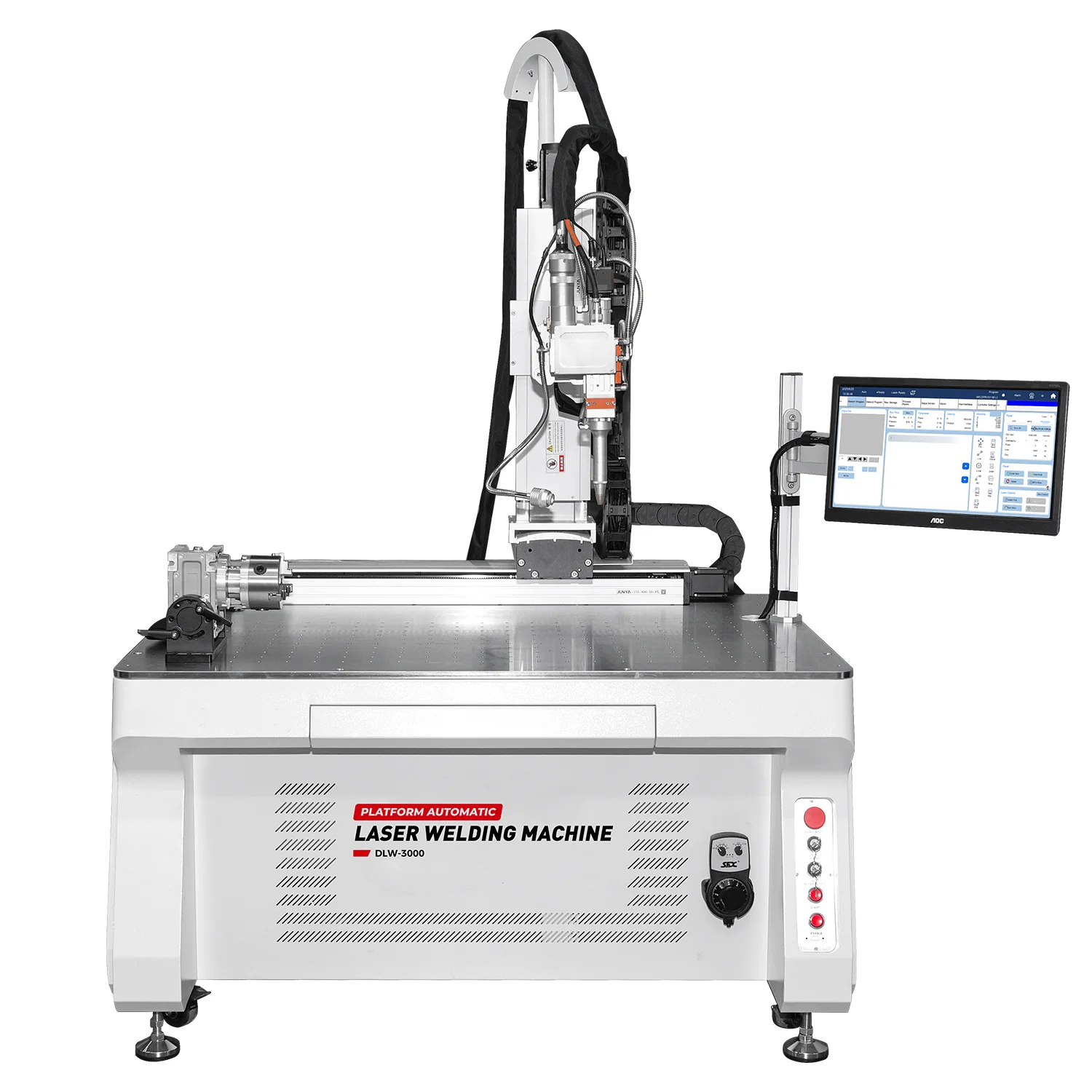

ZAC Laser 1500W 2000W 3000W Platform Laser Welding Machine Automatic Laser Welder
