MAIN FEATURES

Genuine JPT LP laser source with 2 years warranty. Genuine Software EZCAD2, support WIN XP/Vista/7/8/10/11 System. Original BJJCZ Control Card . Galvo scanner: SINO-GALVO. Control board: JCZ-LMCV4.
Marking on various metal like Aluminum, Stainless Steel, Brass, Copper,etc. Also some of nonmetal such as nylon, light button, ABS, PVC, PES,etc.Min. Line Width: 0.01mm (0.0004in) depend on material Min. Character: 0.2mm(0.0008in) depend on material Marking contents: barcodes, serial numbers, text, vector, and logos.
Good at marking on large-szie workpiece or work from different angles; Pulsed fiber laser, realize excellent beam quality; Full air cooling, low cost, maintenance-free, no consumables,energy saving, small and exquisite.

TECHNICAL PARAMETERS

Marking Area: 110*110mm(4.3*4.3in)/150*150mm(5.9*5.9in)175*175mm(6.9*6.9in)
Maximum Material Thickness: 300m(11.8in)@110*110mm/250mm(9.8in)@150*150mm/206mm(8.1in)@175*175mm
Laser Type/Pulse Duration: JPT/200ns
Repetition Rate(Frequency): 1-600kHz@JPT LP
Output Power Adjustment Range: 10%-100%
Marking Speed: ≤7m/s(275.6in/s)
Engraving Depth: ≤0.2mm(0.008in)/≤0.4mm(0.016in)/≤1mm(0.024in)
Minimum Line Width: 0.01mm(0.0004in) depends on the material
Minimum Character: 0.2mm(0.0008in) depends on the material
Electrical Requirements: 110V-240V/50Hz-60Hz(According to local electricity supply)
Power Consumption: 500W/800W/1000W
Marking Interface: USB connection. Compatible with Windows XP/Visa/7/8/10/11
Automated Communication: TCP/IP, IO, RS232
Marking Content: barcodes, serial numbers, text, vector, and logos.
Red Dot Pointer: Since the laser beam is invisible, the Red Dot Pointer allows you to have a visual reference for locating where the laser will fire.

CARING WARRANTY

1 Year Warranty for the Whole Machine, 2 Years for Laser Source. No import duty and other tax for US Customers. English operation interface. Parameters are intuitive and adjustable. Lifetime technical assistance. Delivered to your door directly by DHL/UPS. Of course, if you want to reduce transportation costs(by sea), pls feel free to PM us.

DELIVERY

Remote Assistance for operation issues
Lifetime Online Technical Support
Free Shipping to Your Door by Air (DHL/UPS) about 7-15 Days
No Import Duty for American Customers.

Handheld Laser Engraver

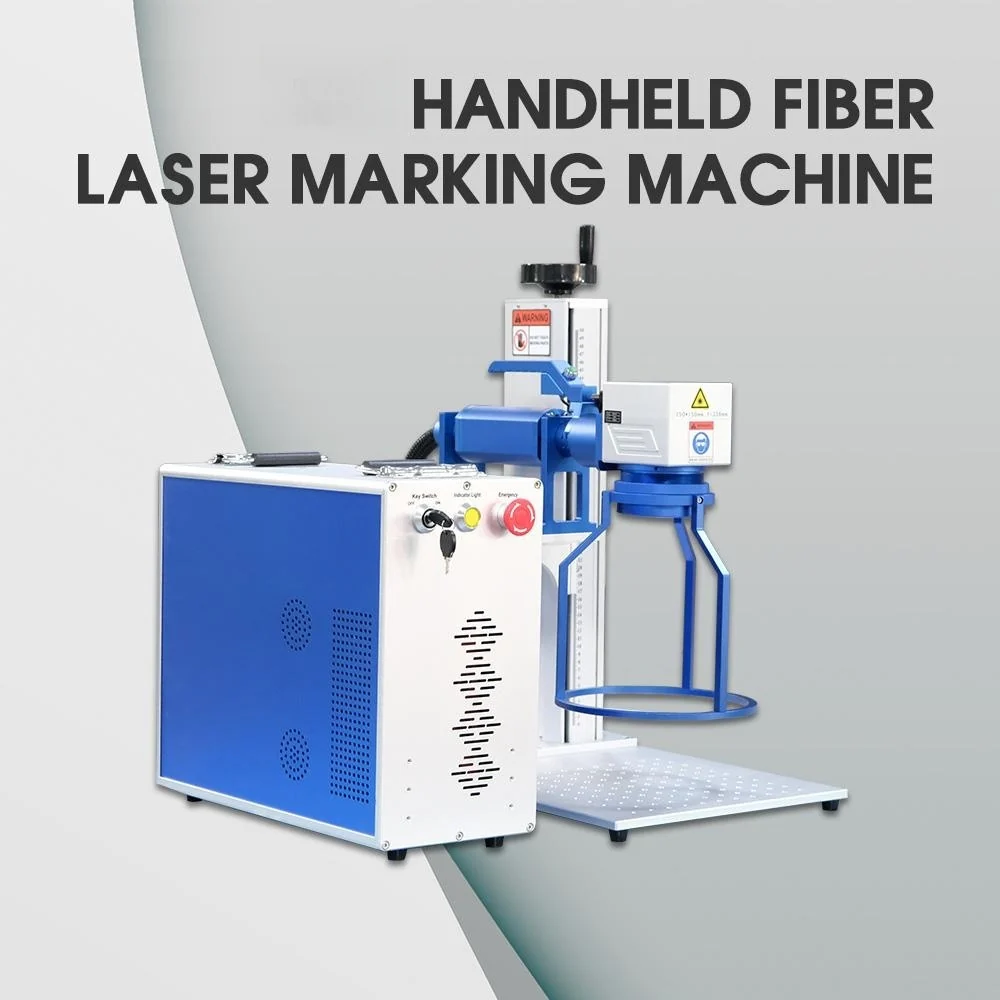

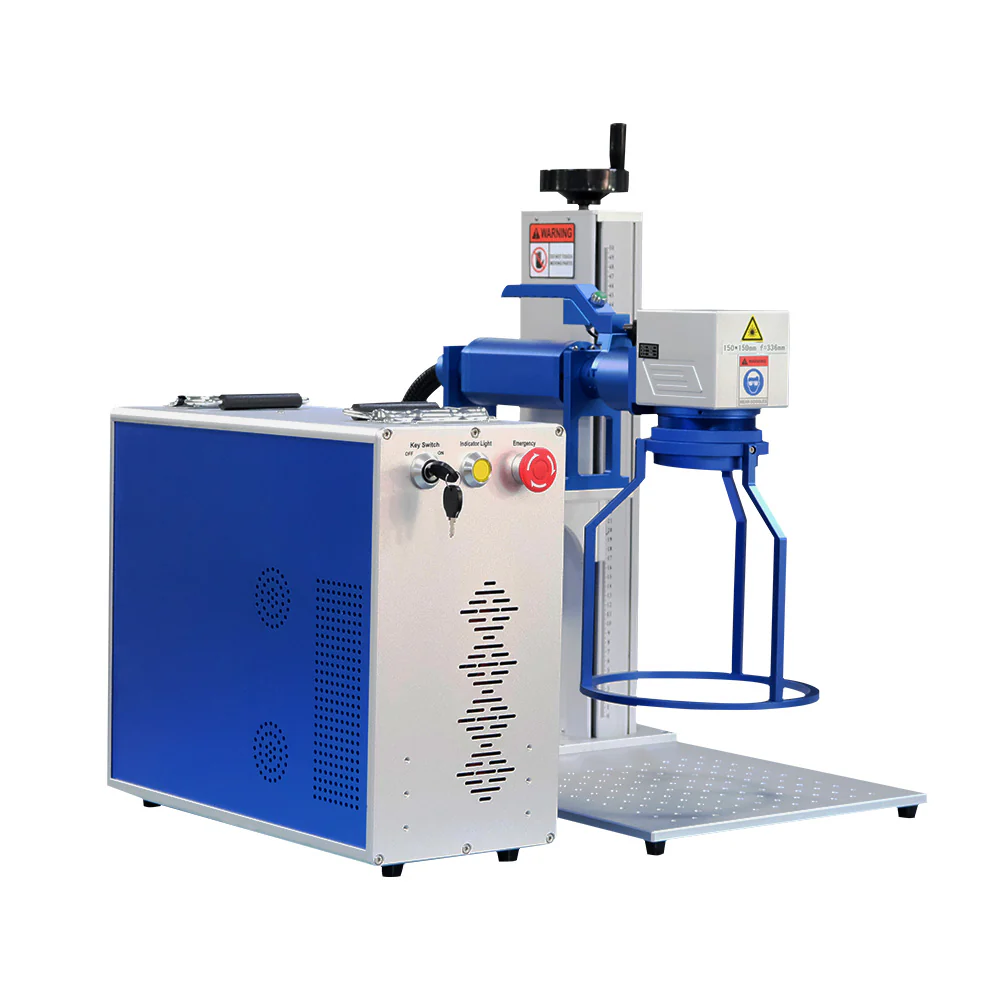

ZAC JPT Handheld 20W/30W/50W Fiber Laser Engraver Laser Marking Machine with EZCAD2.0
